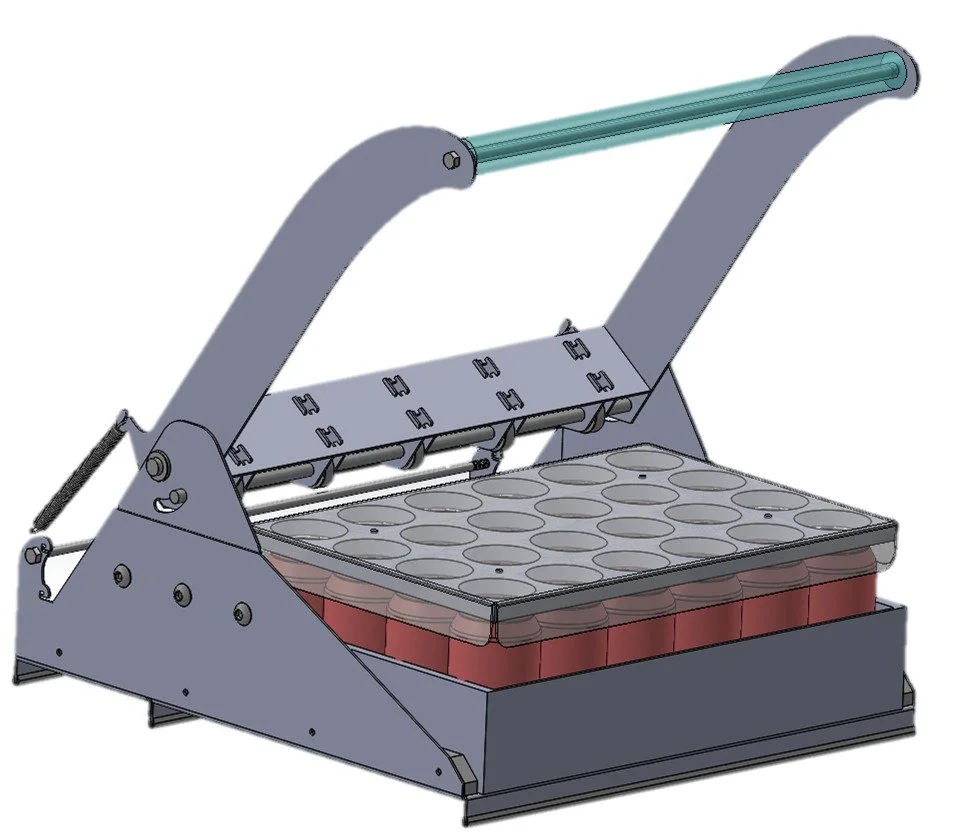

CB Max Case Packer

• Place Ring Sheet, printed side down, into the platen. Push the Ring down on all 4 guide posts.

• Load cans into a Flat and place onto the CB Max Tray.

• Place loaded platen over the cans (Ring side down). Slide cans and platen forward until they hit the stop.

• With 2 hands, press down evenly on handle until it stops.

• Raise handle up and pull the Flat backward out of the machine.

• Reload and repeat.

• The 6 bolts labeled (A) are used to raise the handle section to accommodate 16 oz. cans.

• Simply remove the 6 bolts (3 on each side) and raise the handle section to the next set of holes.

Replace and tighten bolts. (Be sure the bolts are tight, as damage may occur).

• Keep surfaces with metal-to-metal contact lubricated with food-grade grease or Super Lube.

• Use on flat surfaces only.

• To affix this unit to a table, gently screw down into the two holes in the bottom rear section of the base.

• Spacers may be needed between the base and the table if attaching it permanently in place.

• Never force the handle down - damage may occur.

• Please be sure no dented or damaged cans are placed into this unit.

• Periodically check for loose bolts. (Especially the 6 high adjustment bolts (A), as damage may occur.)
